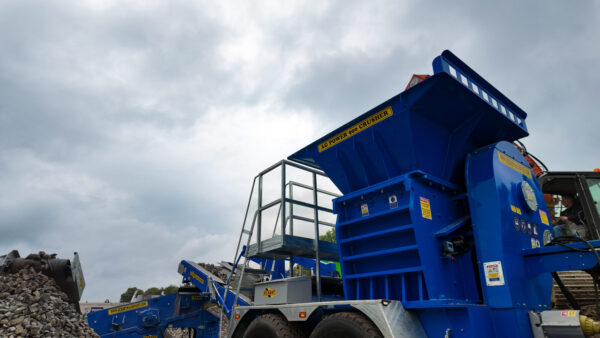

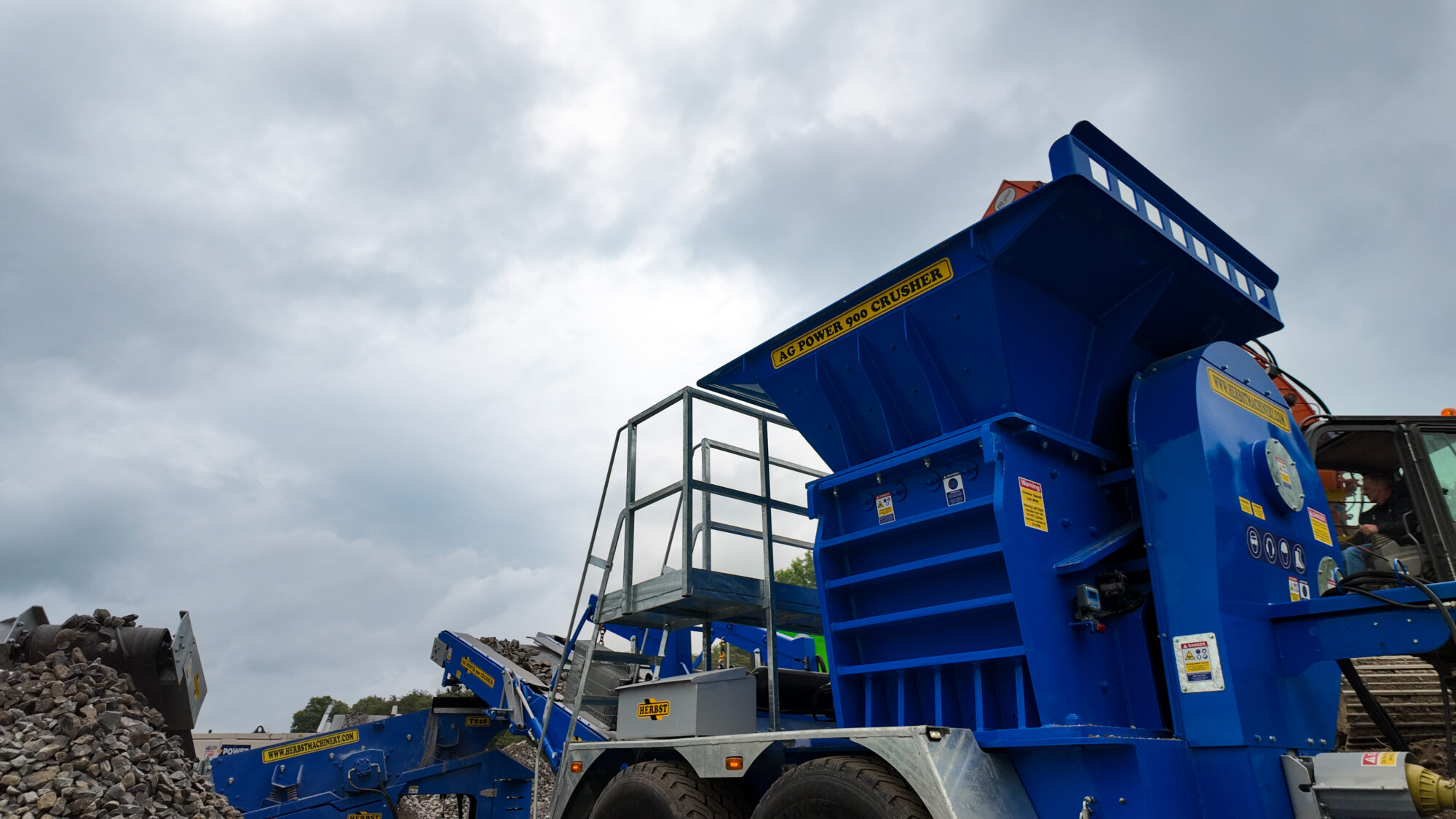

COMPAC 900 POWER AGRI CRUSHER – AG900 POWER
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 2
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 3
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 4
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 5
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 6
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 7
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 8
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 9
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 10
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 11
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 12
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 13
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 14
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 15
COMPAC 900 POWER AGRI CRUSHER – AG900 POWER - Image 16

COMPAC 900 POWER AGRI CRUSHER – AG900 POWER

Video Operation Manual

Category:

Description

Description:

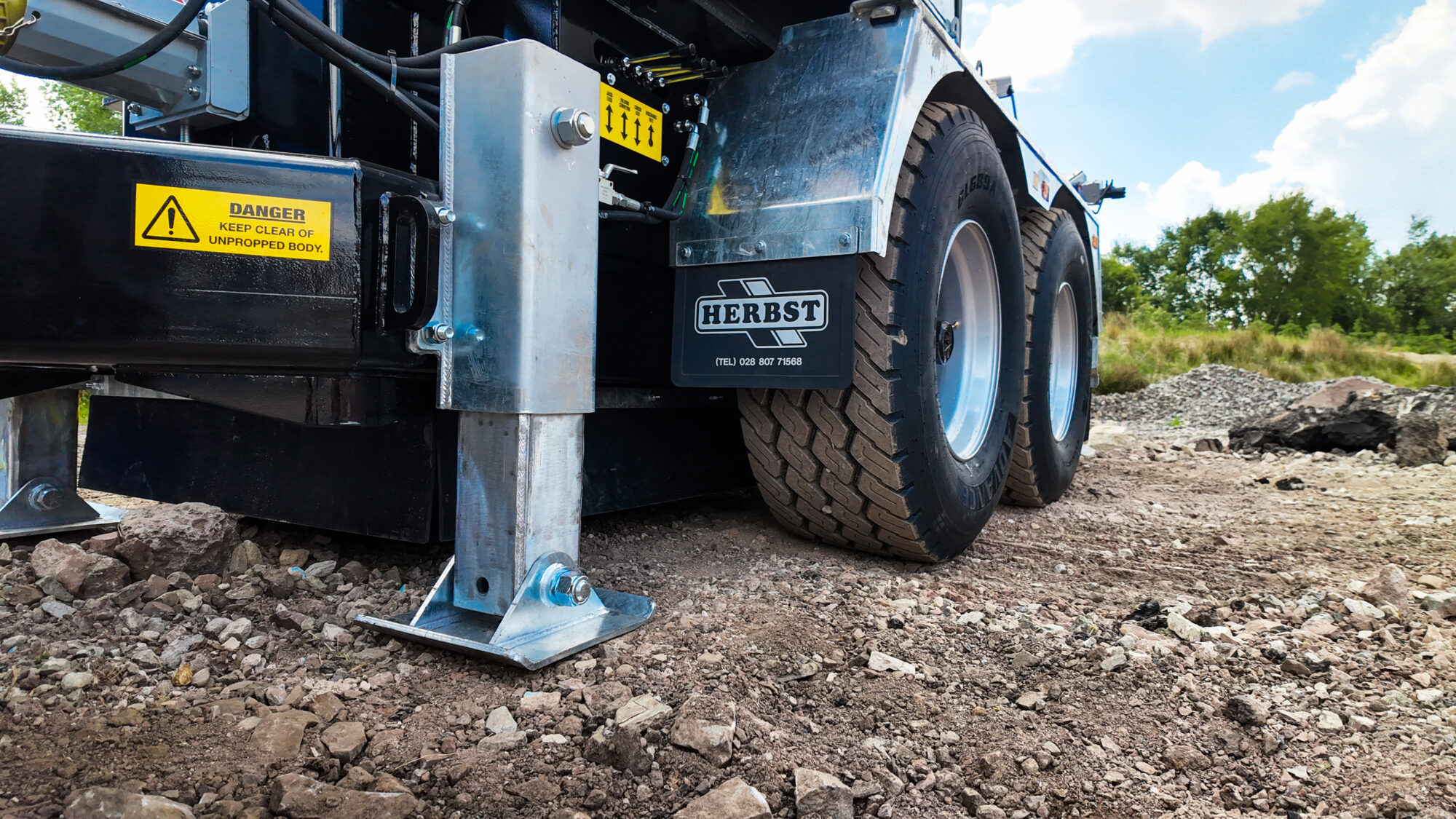

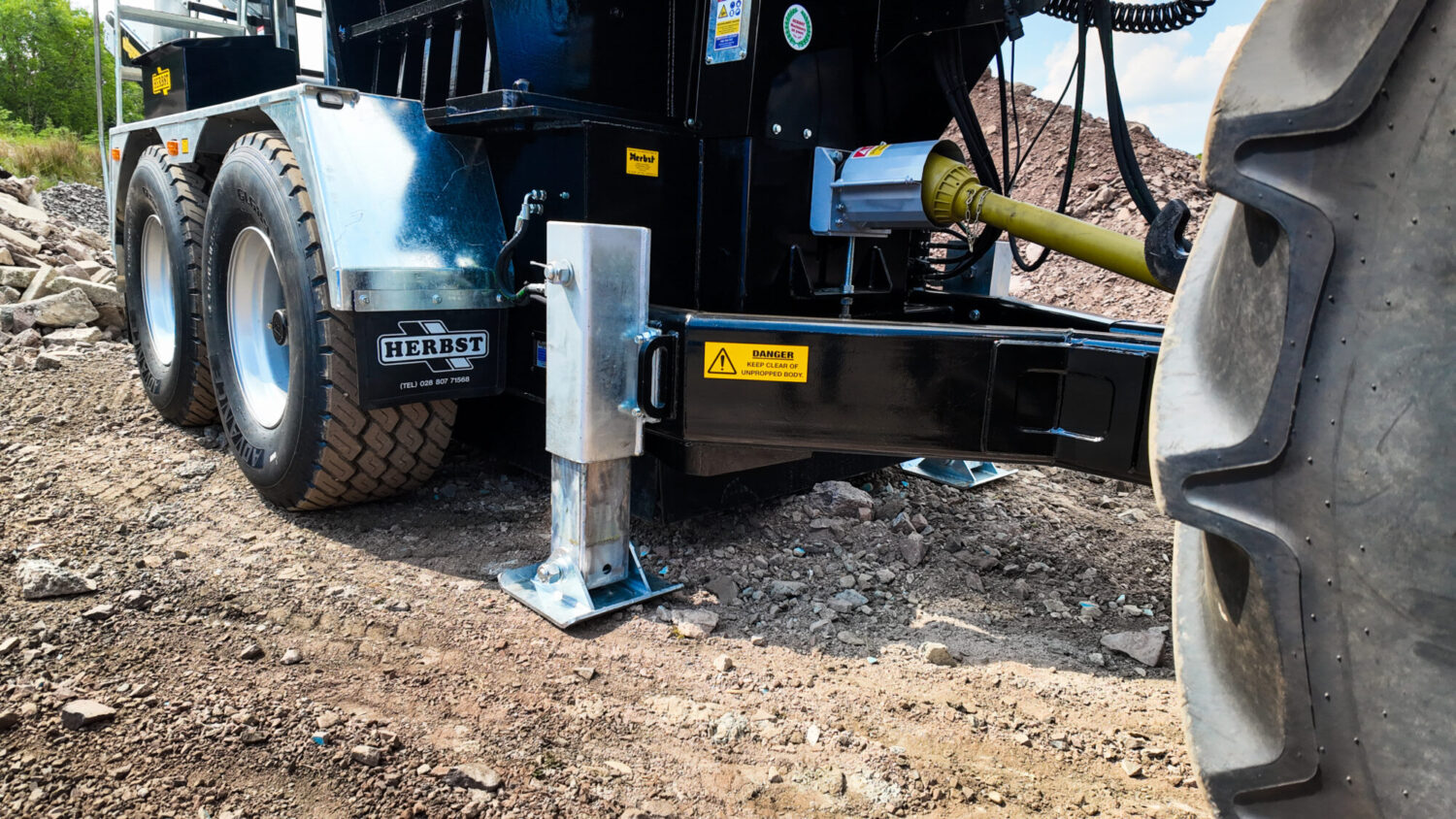

A Heavy Duty 900 Jaw Crusher established as a primary crusher for more robust applications, with the ability to crush more efficiently.  With a comparatively heavier unit than the AG900, this machine is ideal for breaking up large rocks and concrete in the primary phase. Thecorrugation on the primary jaw plates provides better grip on the material, allowing for higher crushing performance and reduced slippage on more challenging materials. Crush size can still be brought down to 50mm, allowing versatility for many different applications, even as a secondary crusher. Due to the increased weight in the machine, many features have been upgraded, including the Jack Legs, Chassis and Running Gear.

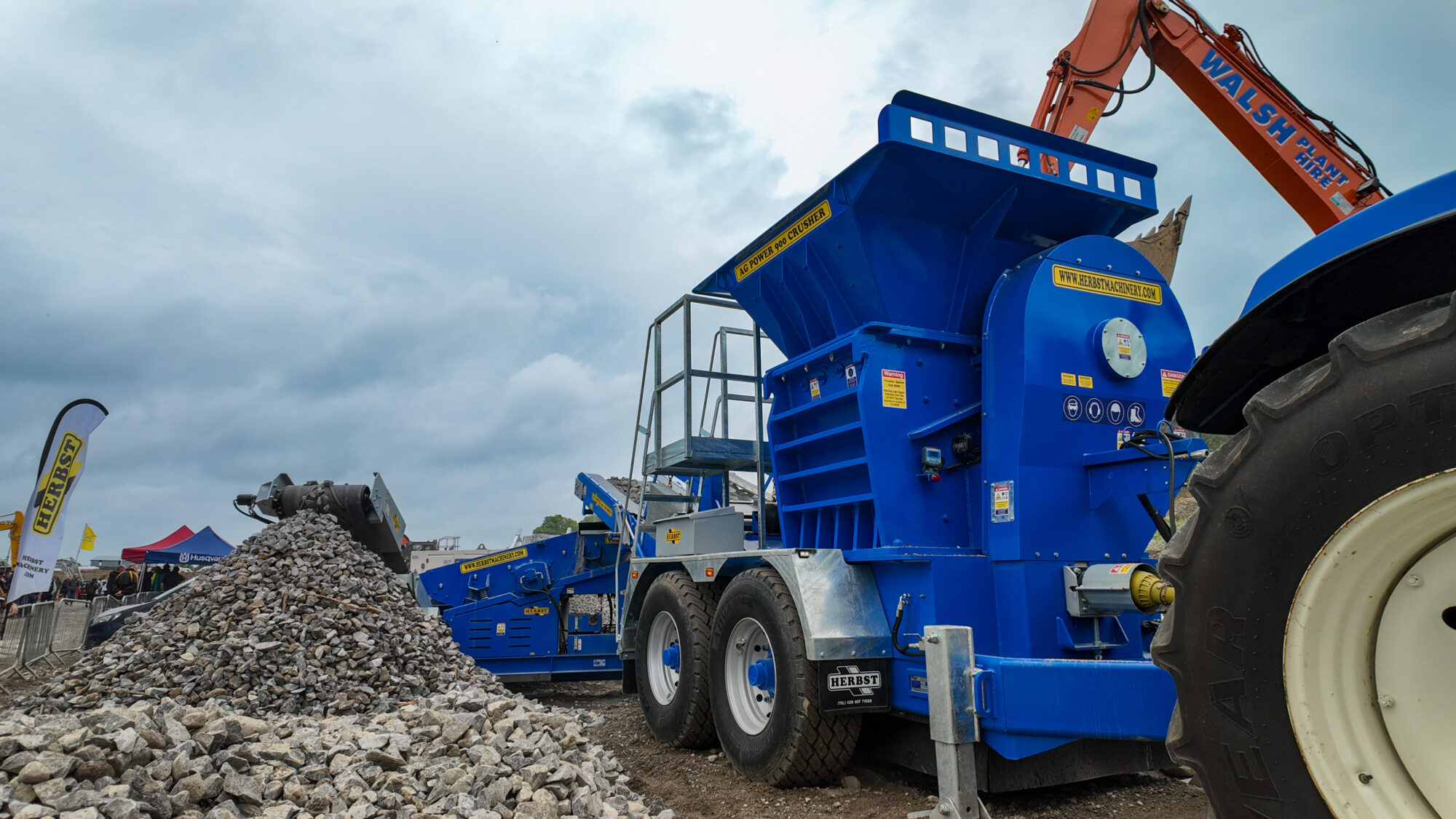

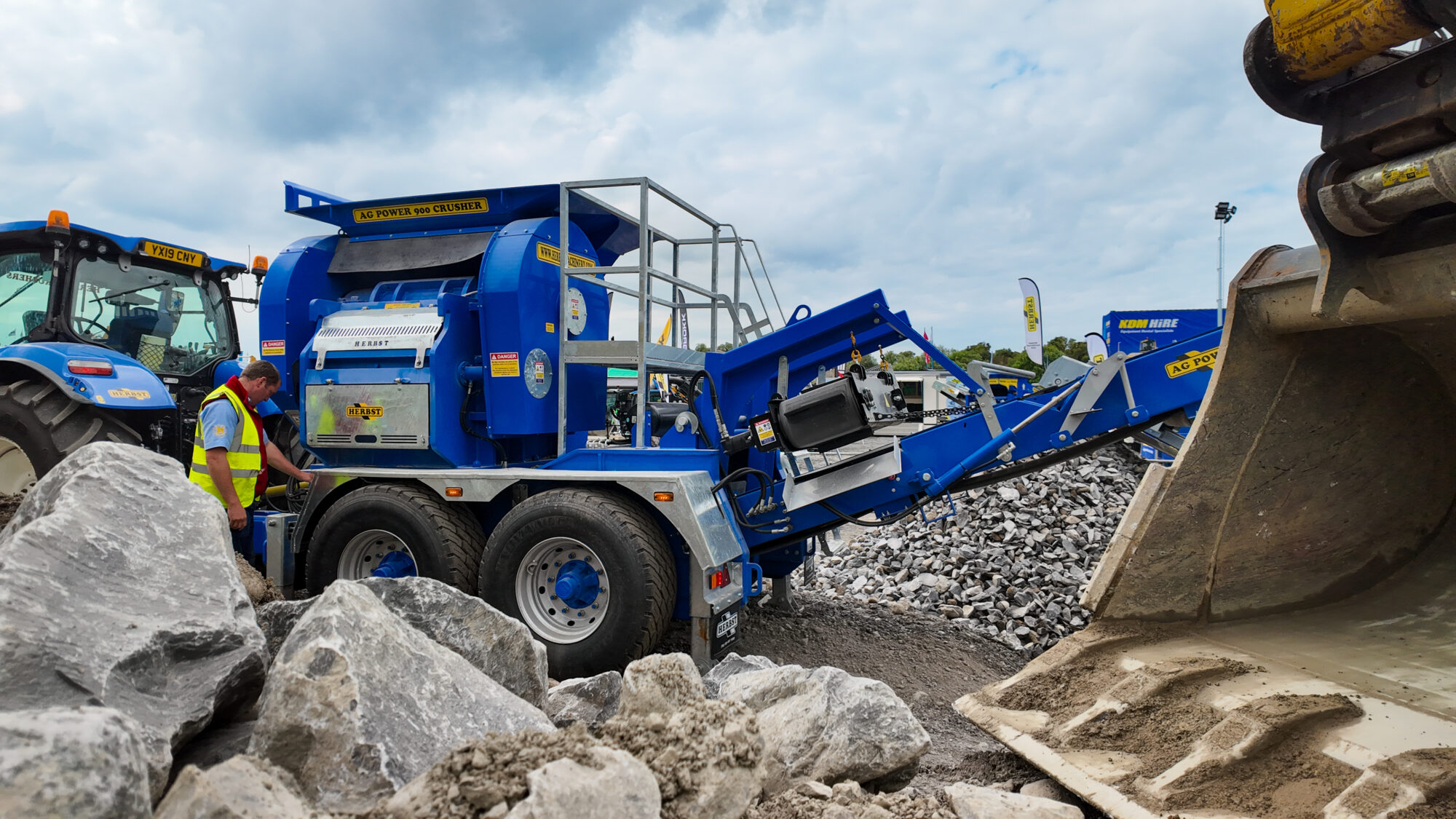

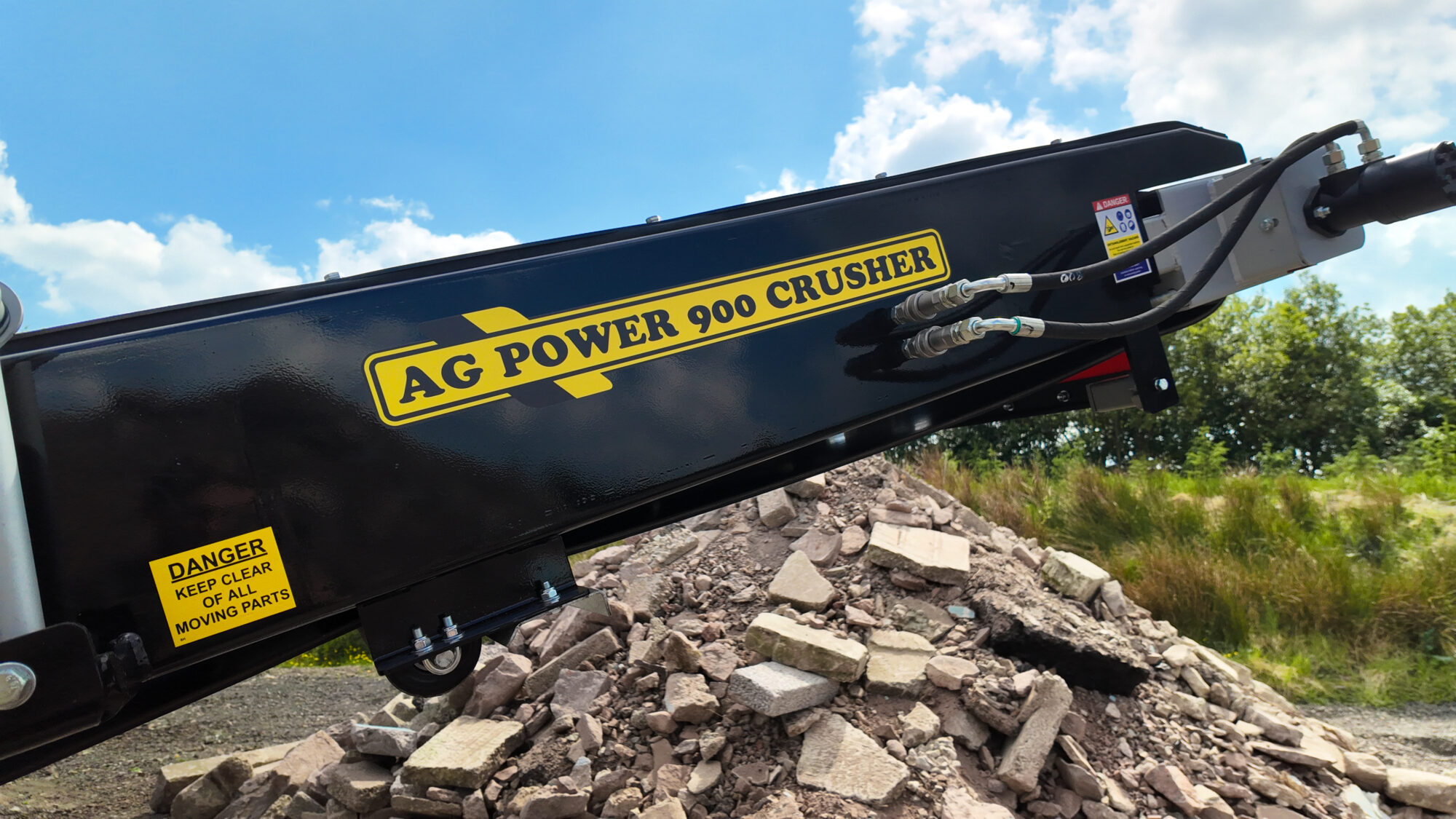

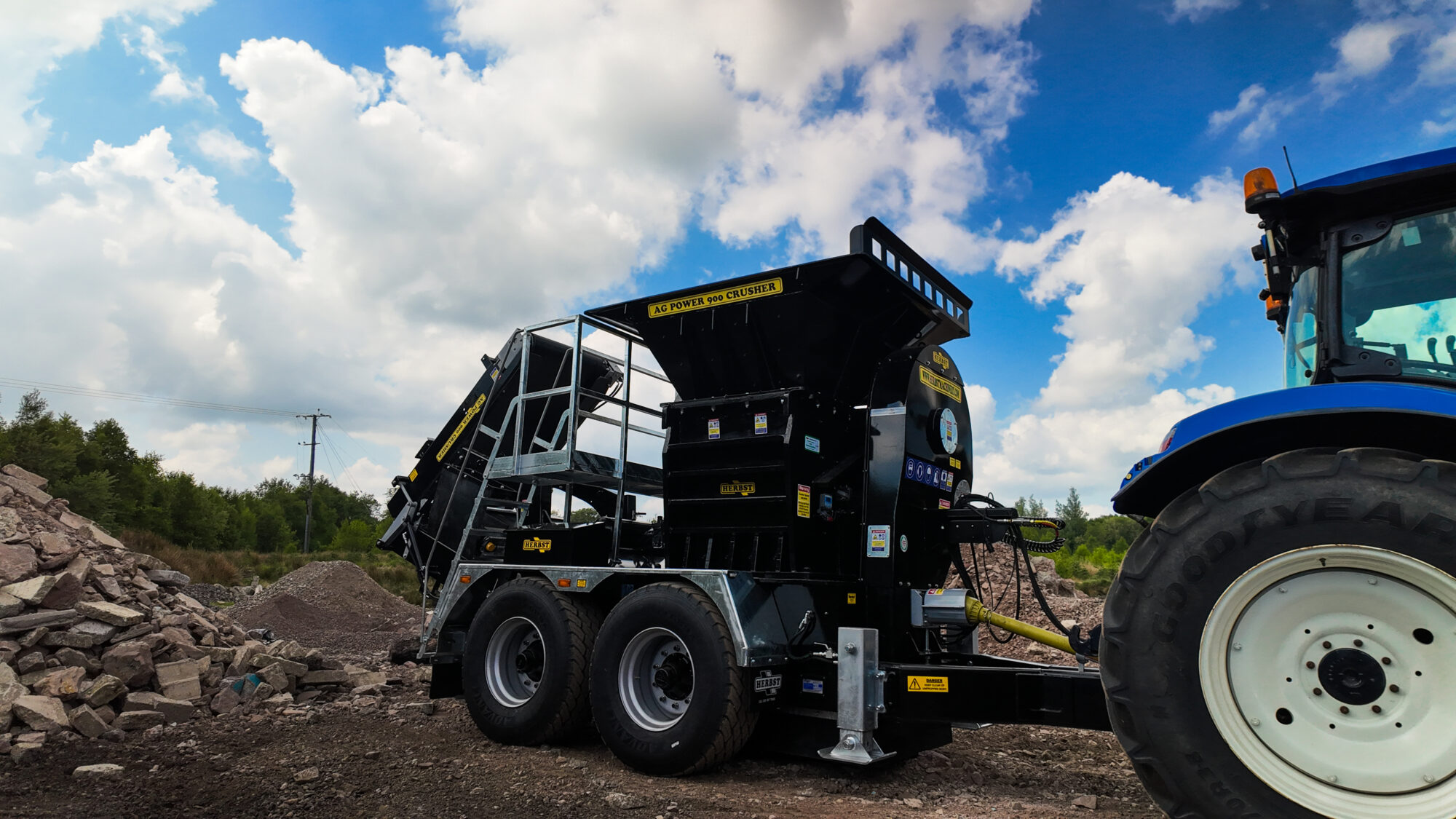

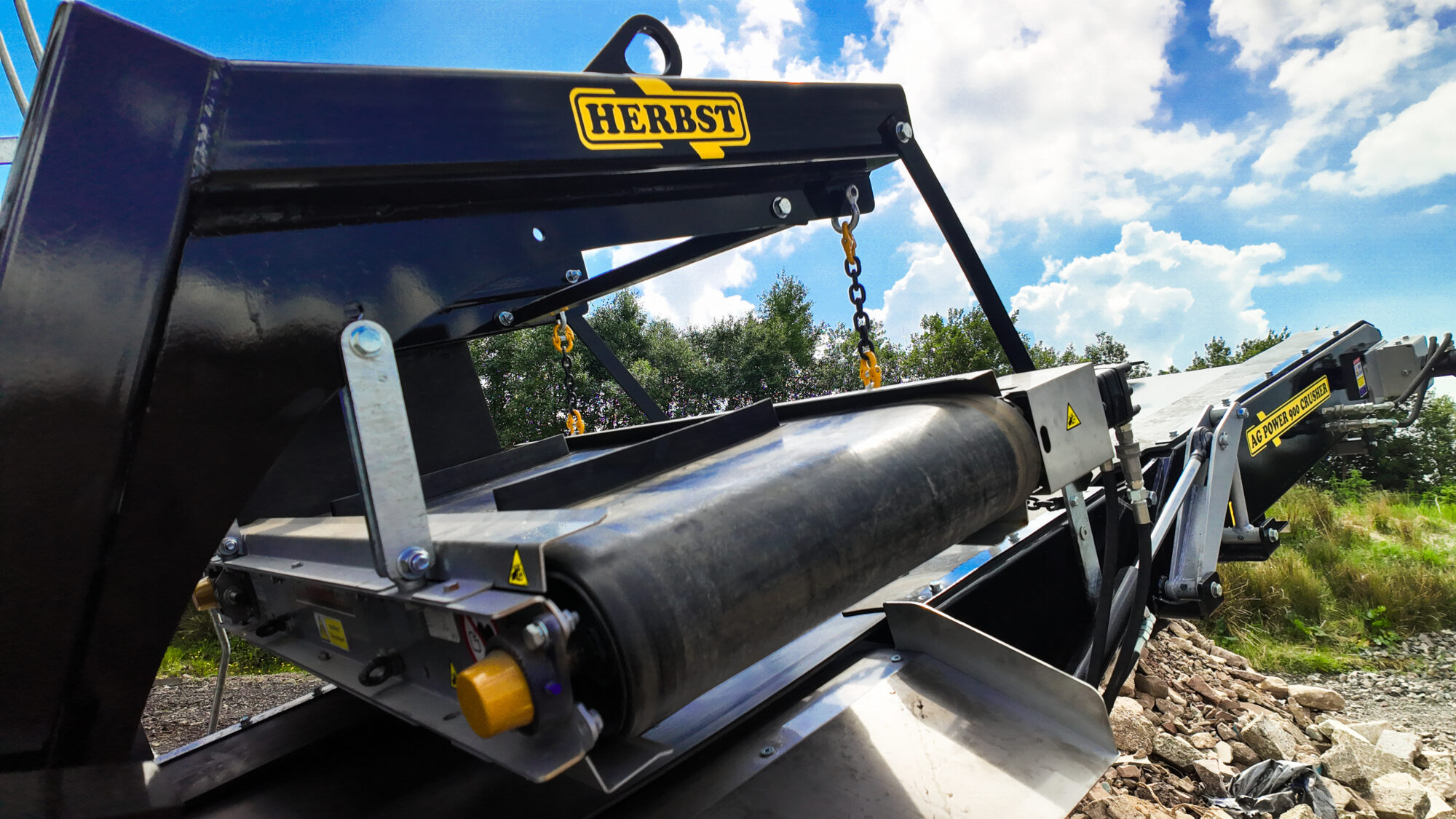

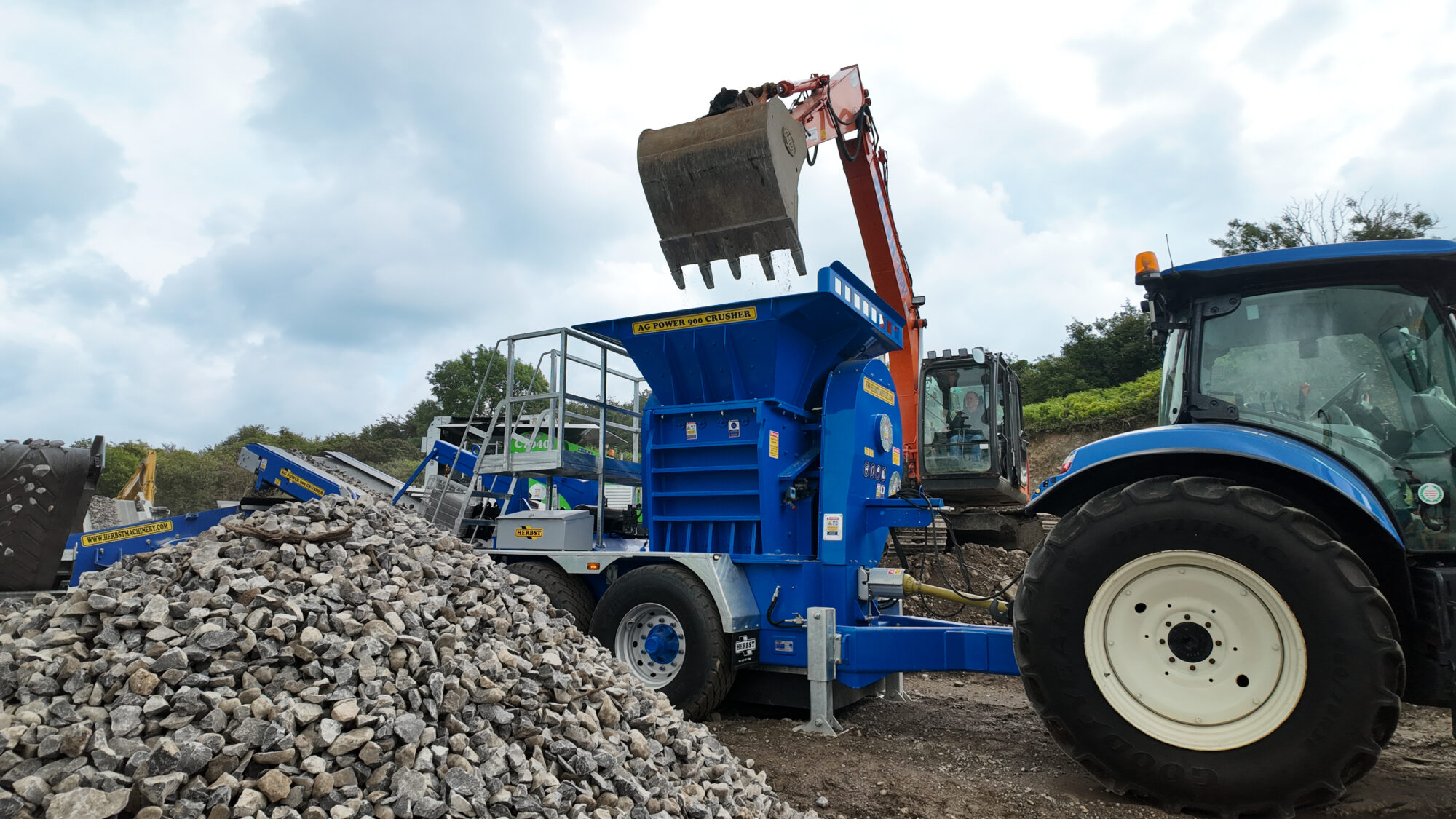

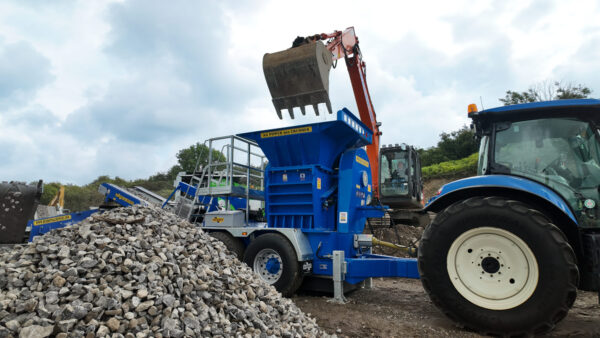

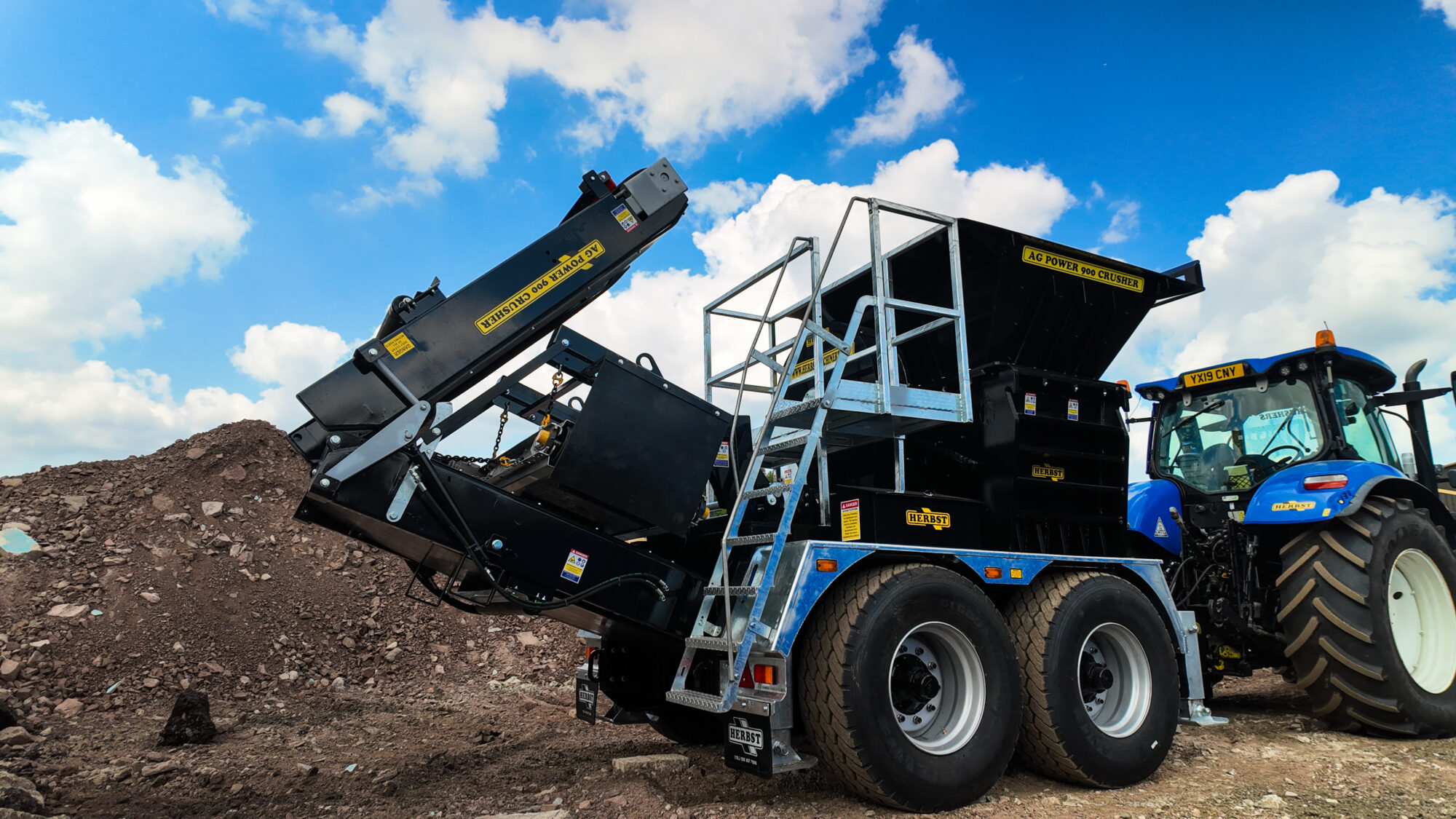

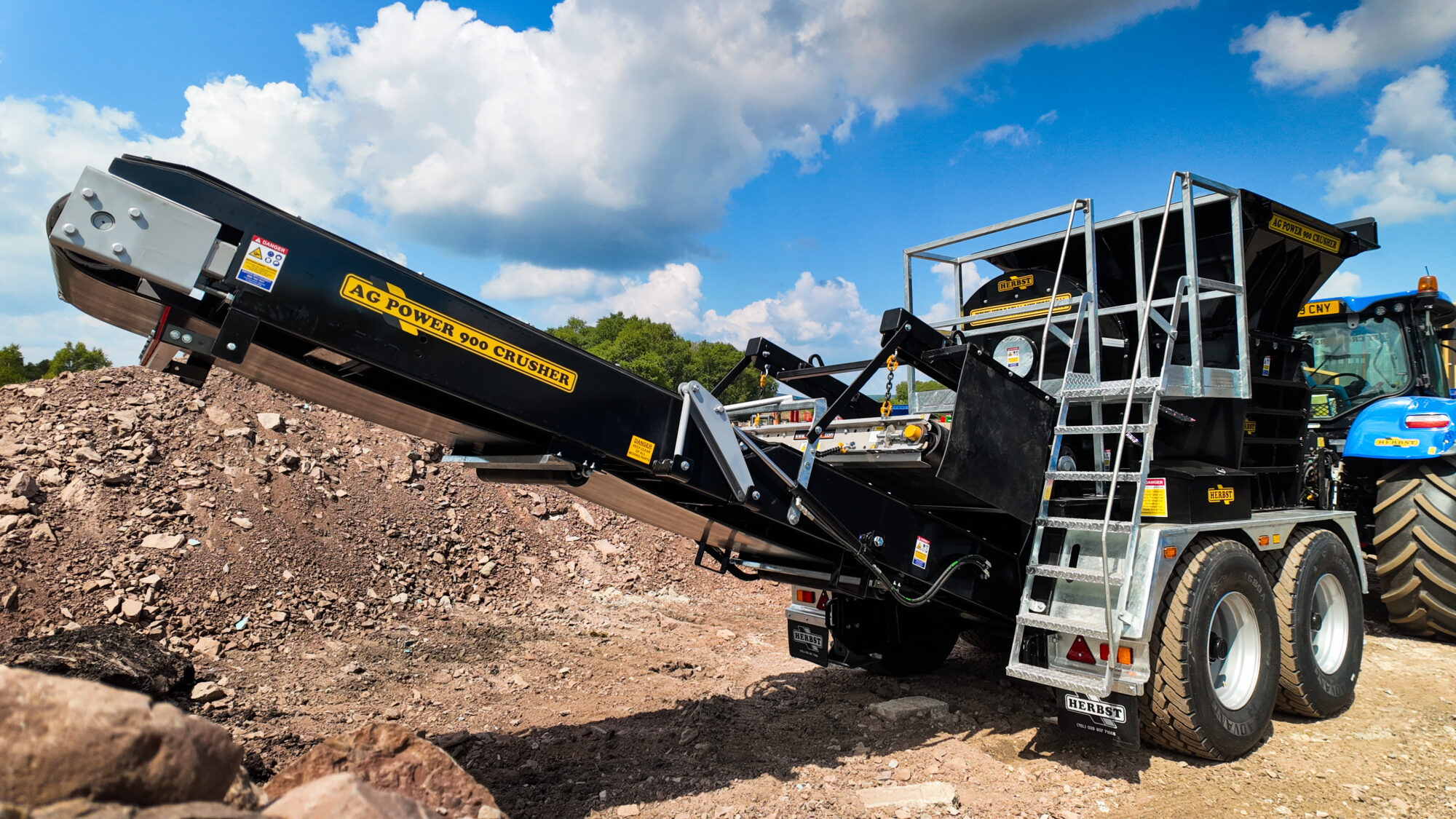

This crusher is powered by Tractor PTO, with the tractor also powering all the hydraulic functions on the machine. Material is fed directly into the jaw chamber via the large hopper. The hopper is lined with Hardox, offering more protection for long life of the machine. Crush size is easily regulated, with processed material discharged onto a conveyor and stockpiled at the rear.

Suitable for a variety of applications within demolition, recycling & quarrying, where unwanted material is processed into a useable product. Ideal versatility to manage both the small- and large-scale projects, due to its’ simplicity in transportation and impressive capabilities in crushing all types of material.

Option available for an Over Band magnet.

Key Features:

  • 900 x 450 HD Jaw Crusher
  • Direct Feed Hopper / Hardox Lined

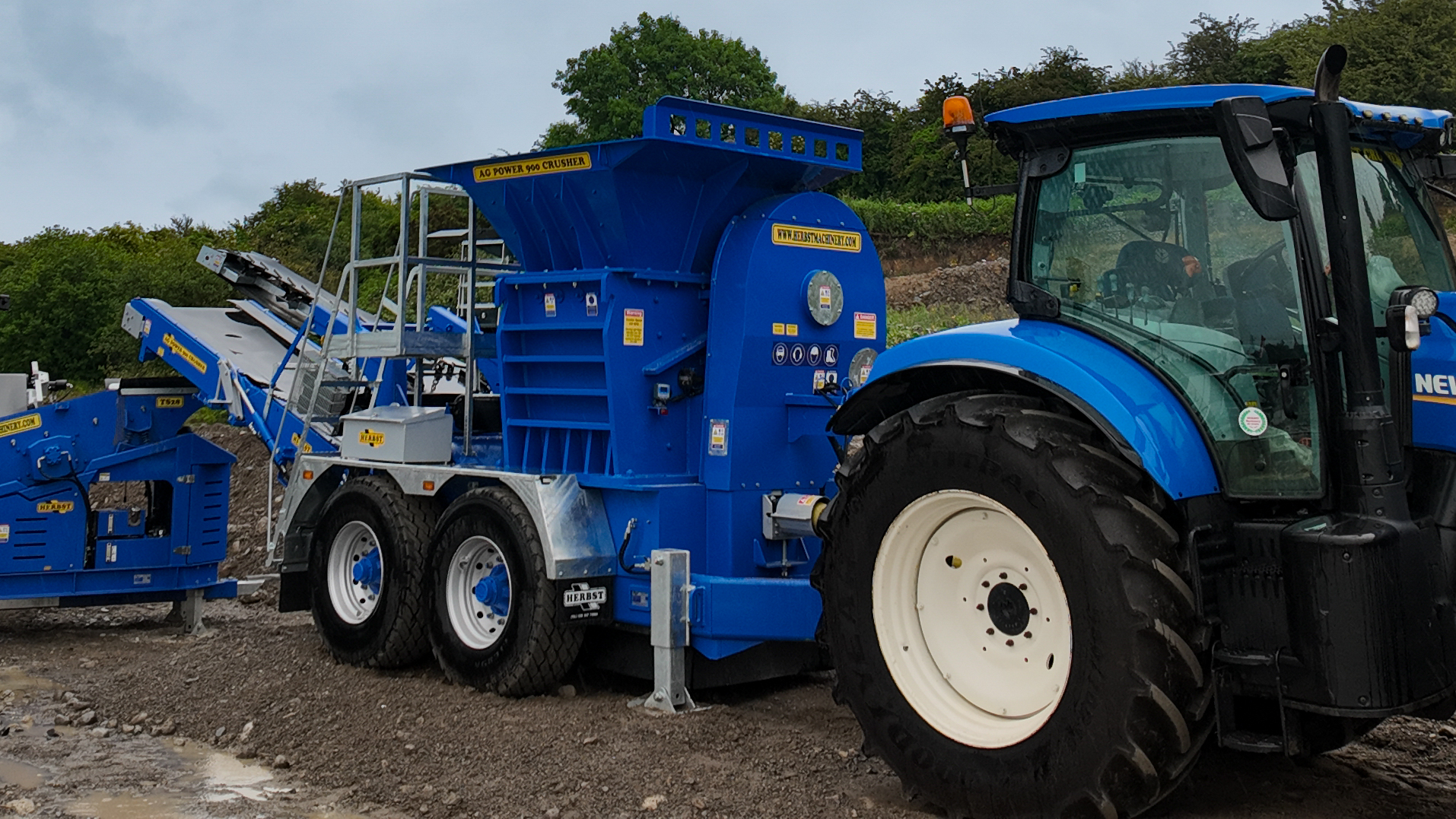

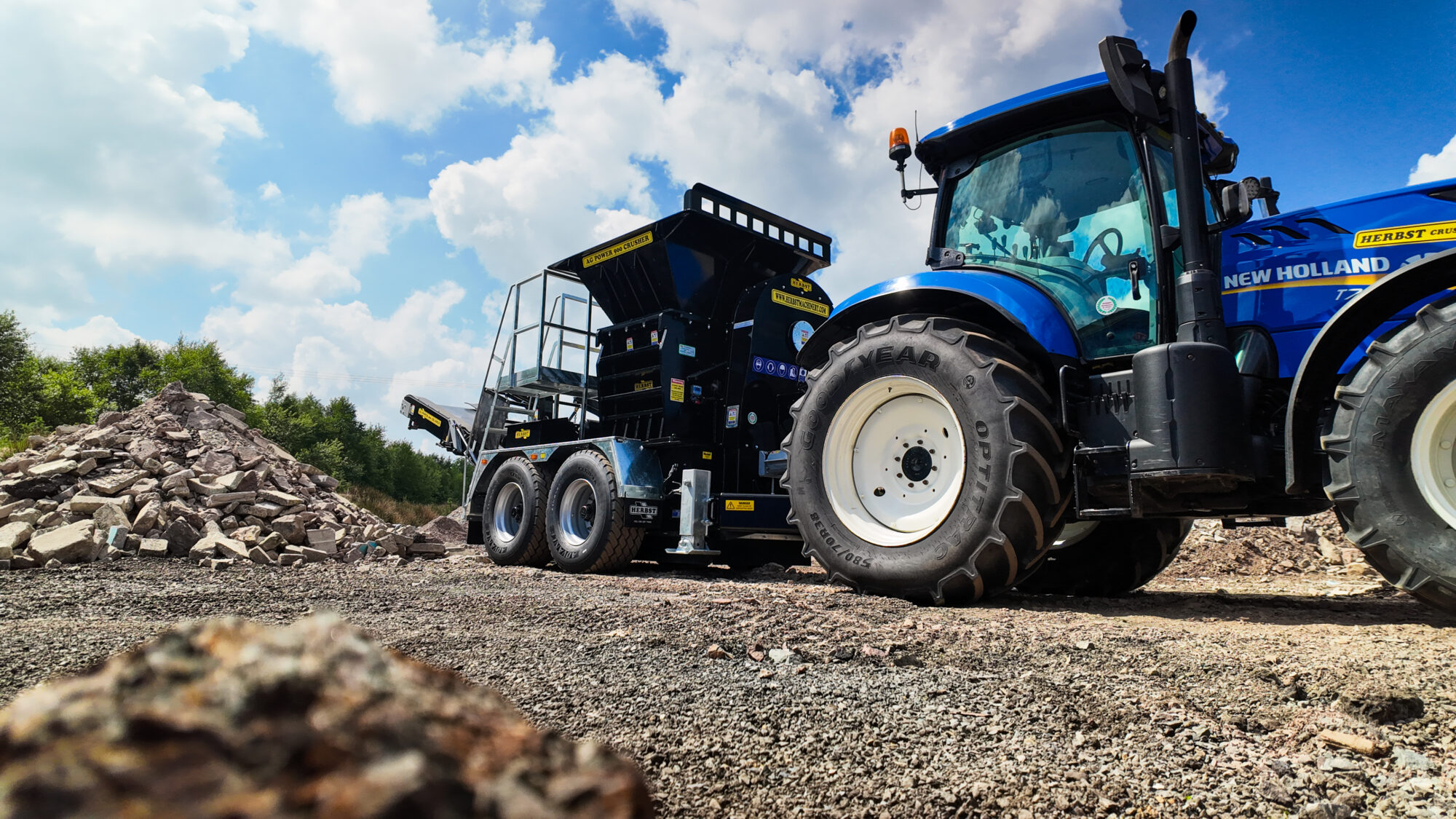

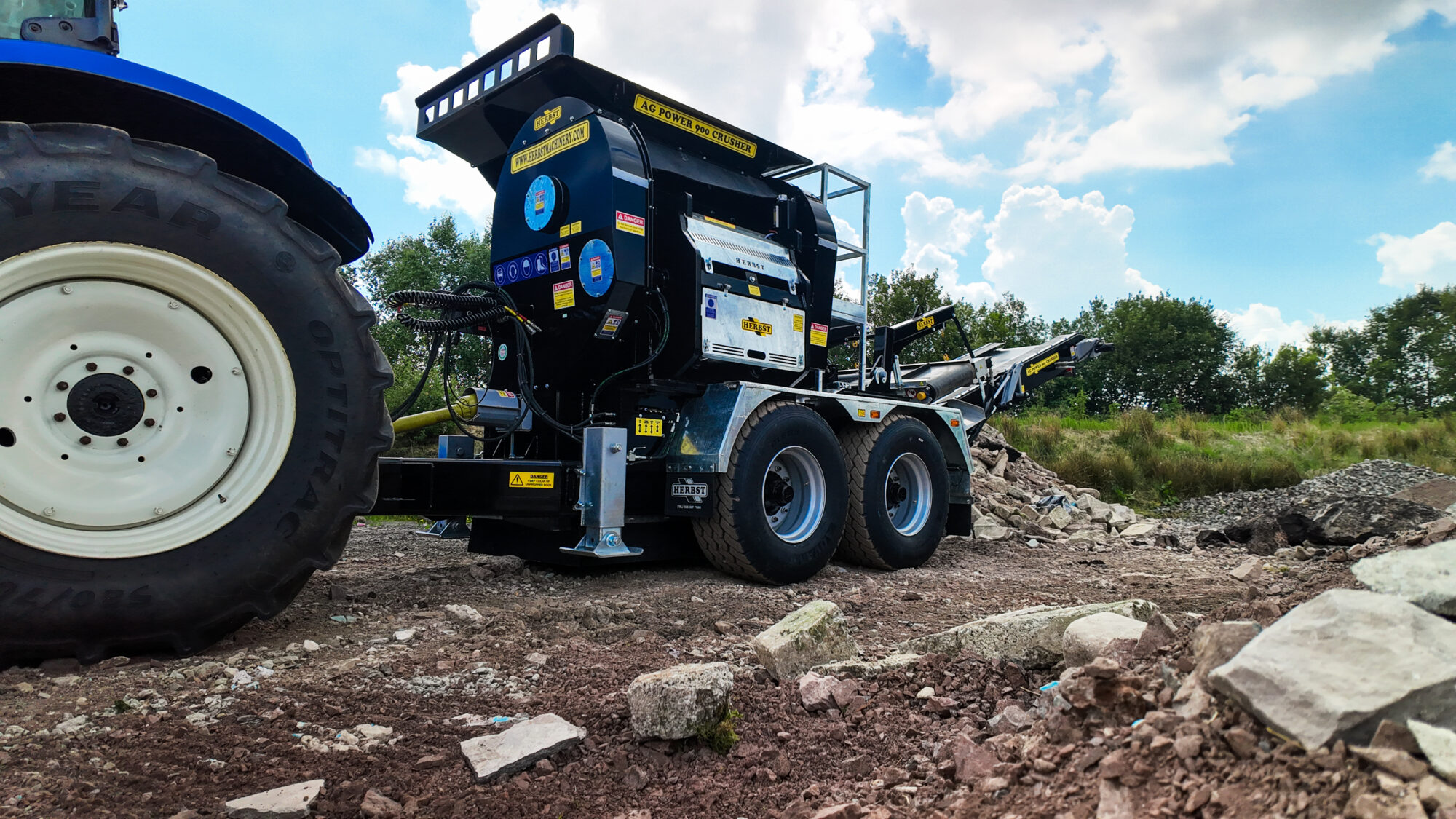

  • Powered by Tractor PTO
  • 150HP Requirement

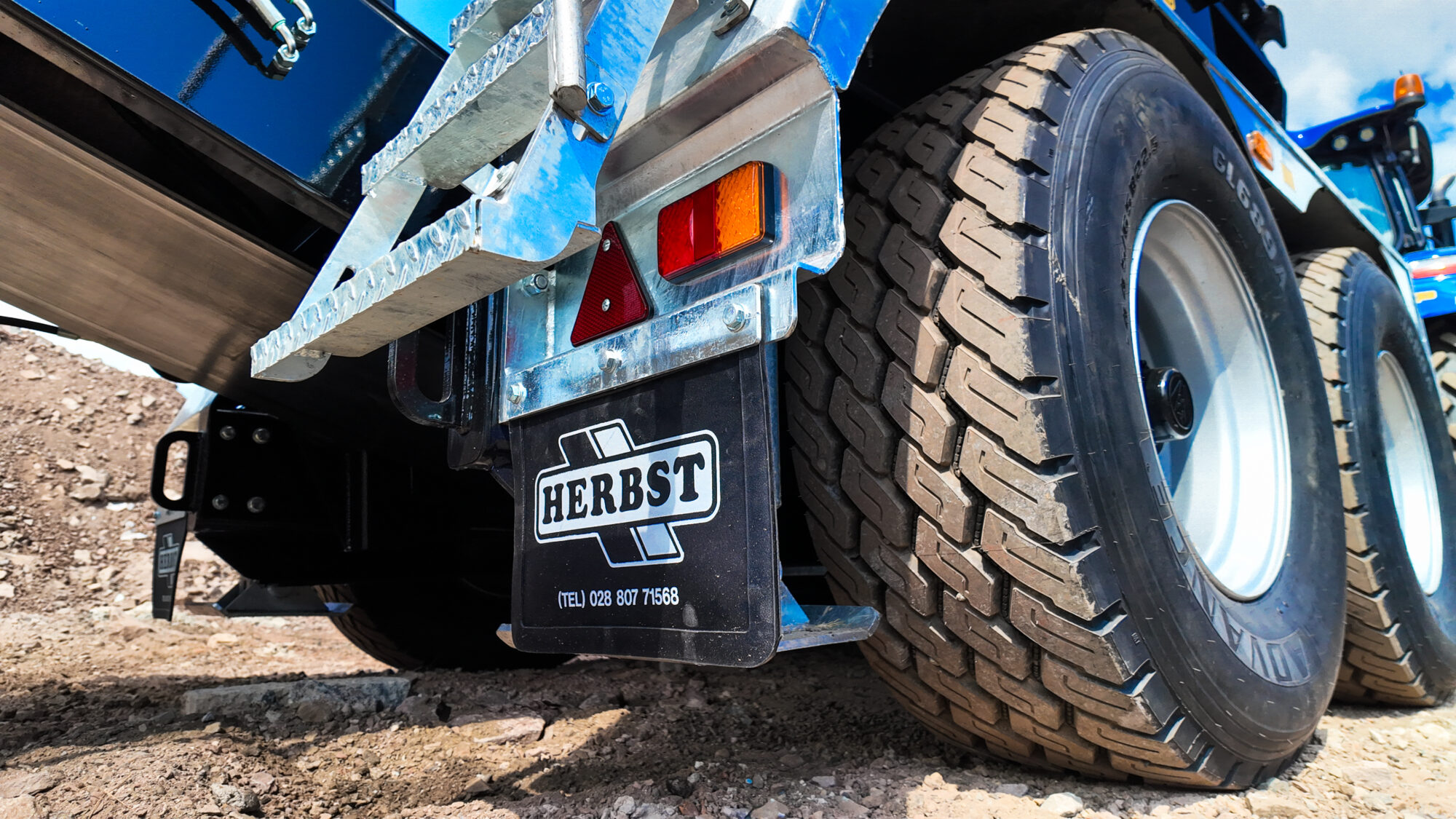

  • Running on two axles / 425 Super Singles
  • 60 – 100 TPH / Crush Size:- 50mm to 150mm
