C9045 Crusher

Description

The Herbst C9045 900 × 450 Jaw Crusher is a robust tracked crushing solution designed to deliver reliable performance across a broad range of applications, including recycling, demolition, construction, and landscaping. Built with durability and output in mind, it provides an efficient on-site solution for processing concrete, rubble, and mixed waste materials.

Performance and Power

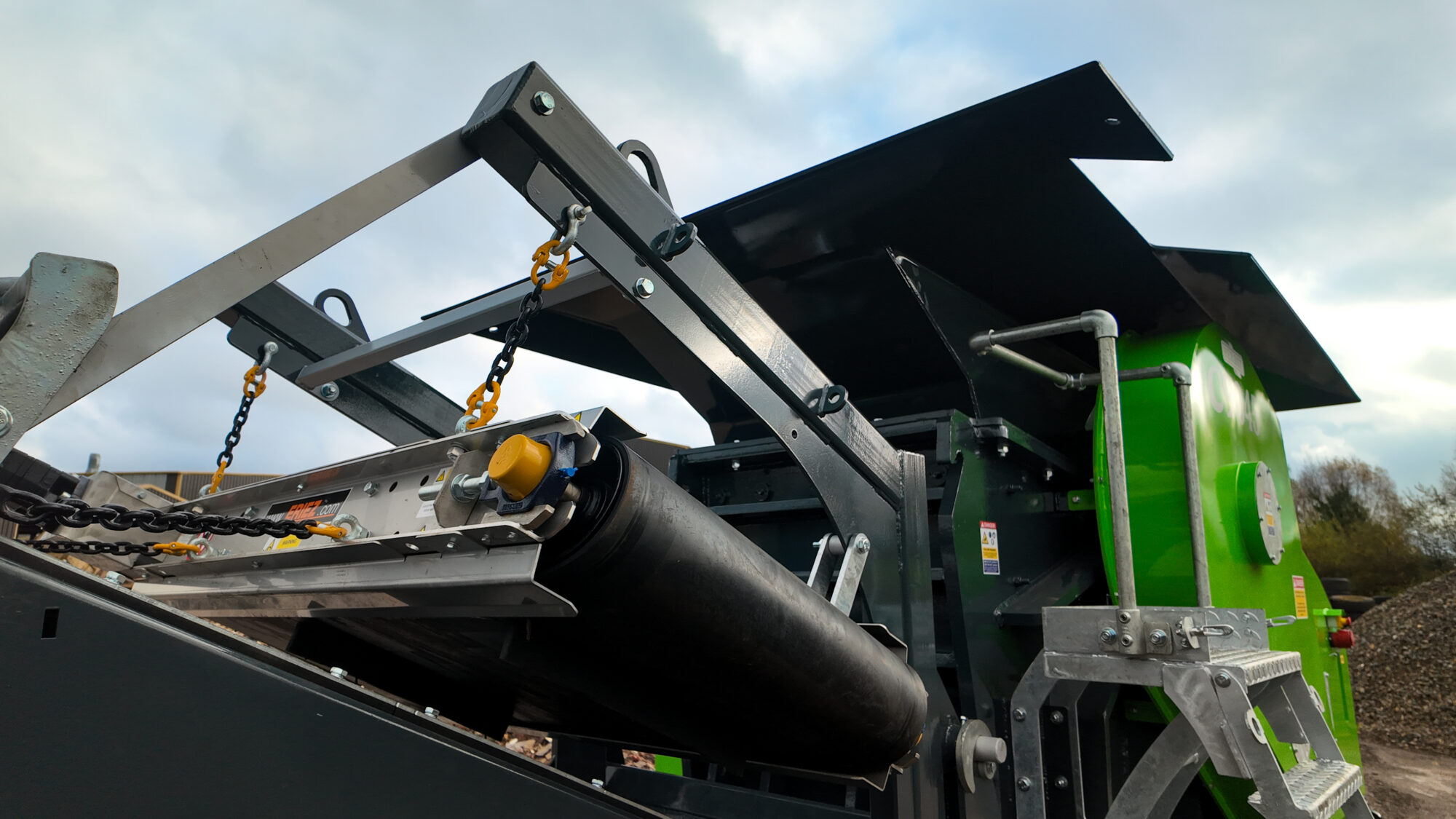

At the heart of the C9045 is a 900 × 450 jaw, fed via a direct-feed hopper and protected by Hardox lining to withstand abrasive materials and extend service life. Material is crushed efficiently and discharged onto a folding conveyor, with an integrated overband magnet for effective ferrous metal separation.

Power is supplied by a 3.3-litre Stage 5 diesel engine from Yanmar, driving a fully hydraulic system throughout the machine. The crusher delivers an output of 40–80 tonnes per hour, with a hydraulically adjustable crush size from 40 mm to 150 mm, allowing operators to adapt quickly to different material types and job requirements.

Mobility and Transport

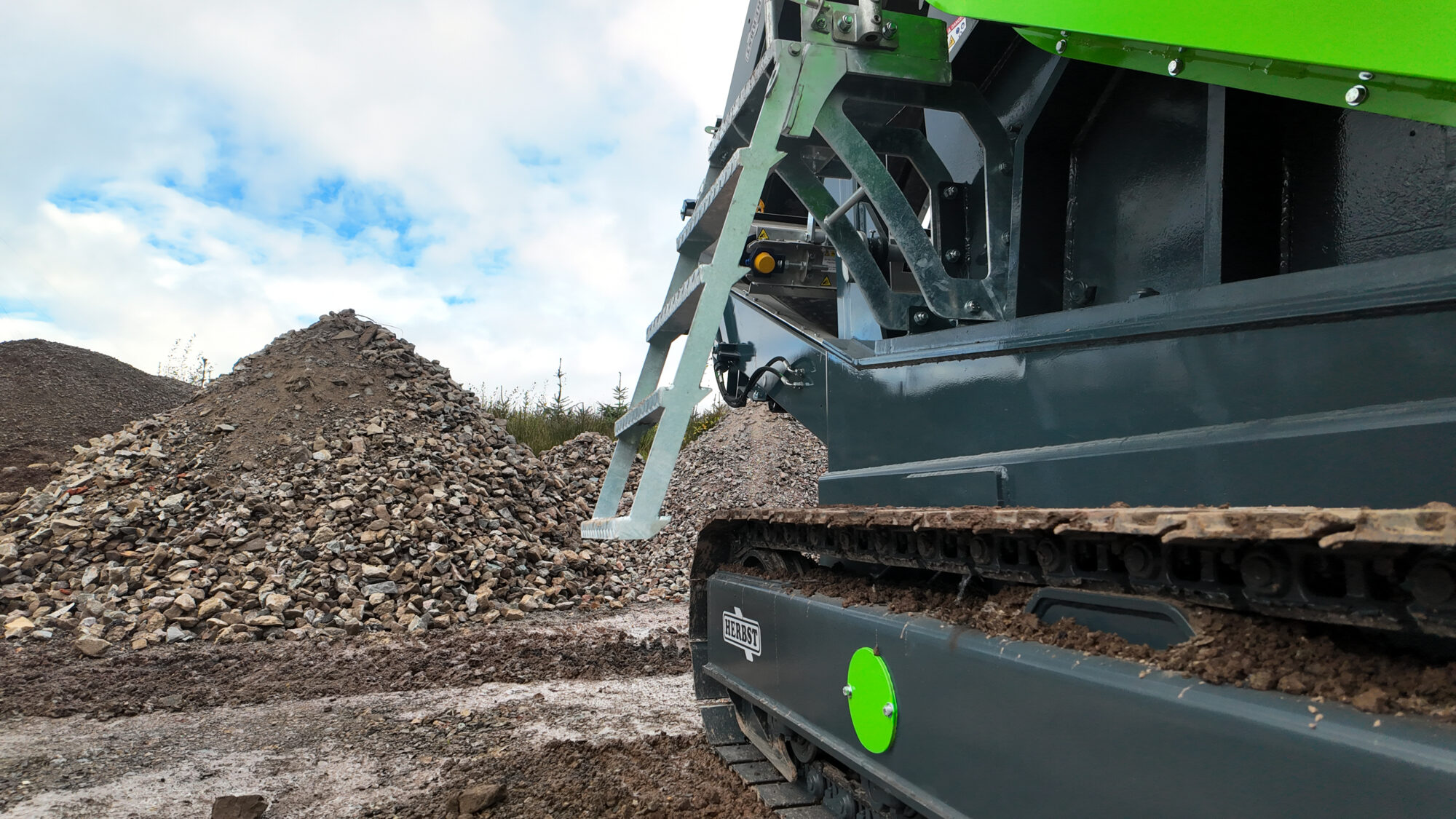

Mounted on a tracked undercarriage, the C9045 is designed for stability and ease of movement across challenging site conditions. Dog-lead remote control enables safe and accurate positioning, even in confined working areas. With a compact footprint and an unladen weight of 14,250 kg, the machine is easy to transport and can be containerised for cost-effective shipping.

APPLICATIONS & MATERIALS

Suitable applications include:

• Recycling

• Construction

• Demolition

• Landscaping

Materials processed:

• Aggregate

• Rubble

• Concrete

• Skip waste

Key Features at a Glance

• 900 × 450 jaw crusher delivering consistent material reduction

• Hardox-lined crushing chamber for extended service life

• Direct-feed hopper with folding discharge conveyor

• Integrated overband magnet for ferrous metal separation

• Adjustable crush size from 40 mm to 150 mm

• Output capacity of 40–80 tonnes per hour

• Tracked undercarriage with dog-lead control for precise site manoeuvrability

• 3.3-litre Yanmar Stage 5 diesel engine powering a fully hydraulic system

• Inspection platform for safe and straightforward maintenance access

• Compact, transport-friendly design suitable for containerisation
