Plant Version Drop Side Trailer

Plant Version Drop Side Trailer

More views

Plant Version Drop Side Trailer Plant Version Drop Side Trailer Plant Version Drop Side Trailer Plant Version Drop Side Trailer Plant Version Drop Side Trailer Plant Version Drop Side Trailer See more photos

DOWNLOAD BROCHURE



Model14' x 7'6"
Model14' x 7'6"
Permissible Total Weight12,600Kg
Unladen Weight2,600kg
Cubic Capacity (cubic metres)4.9
Loading Capacity10,000kg
Maximum Hitch Load3,500kg
Overall length / Width / Height (mm)5645 / 2340 / 1600
Loading Height - Floor to Top of Bin (mm)1600
Inside of Bin Height / Width (mm)600 / 2200
Body Length (mm)4270
Bin Thickness Side / Floor4mm / 6mm
Chassis8" Channel
Running Gear8 Stud Rocker Beams (90 x 90 Beam)
Tyres435 / 50 19.5
Wheel Track Width (mm)1900
Maximum Speed50 KPH
Brake Size (mm)350 X 60
Telescopic Cylinders1
Telescopic Cylinders (No. Of sections / Stroke / Oil)3 / 200 Bar / 13.0 Litres
Tipping Angle 71°:
DrawbarSprung

Standard Features

  • Heavy Duty EN16 Towing Eye
  • Hydraulic Brakes

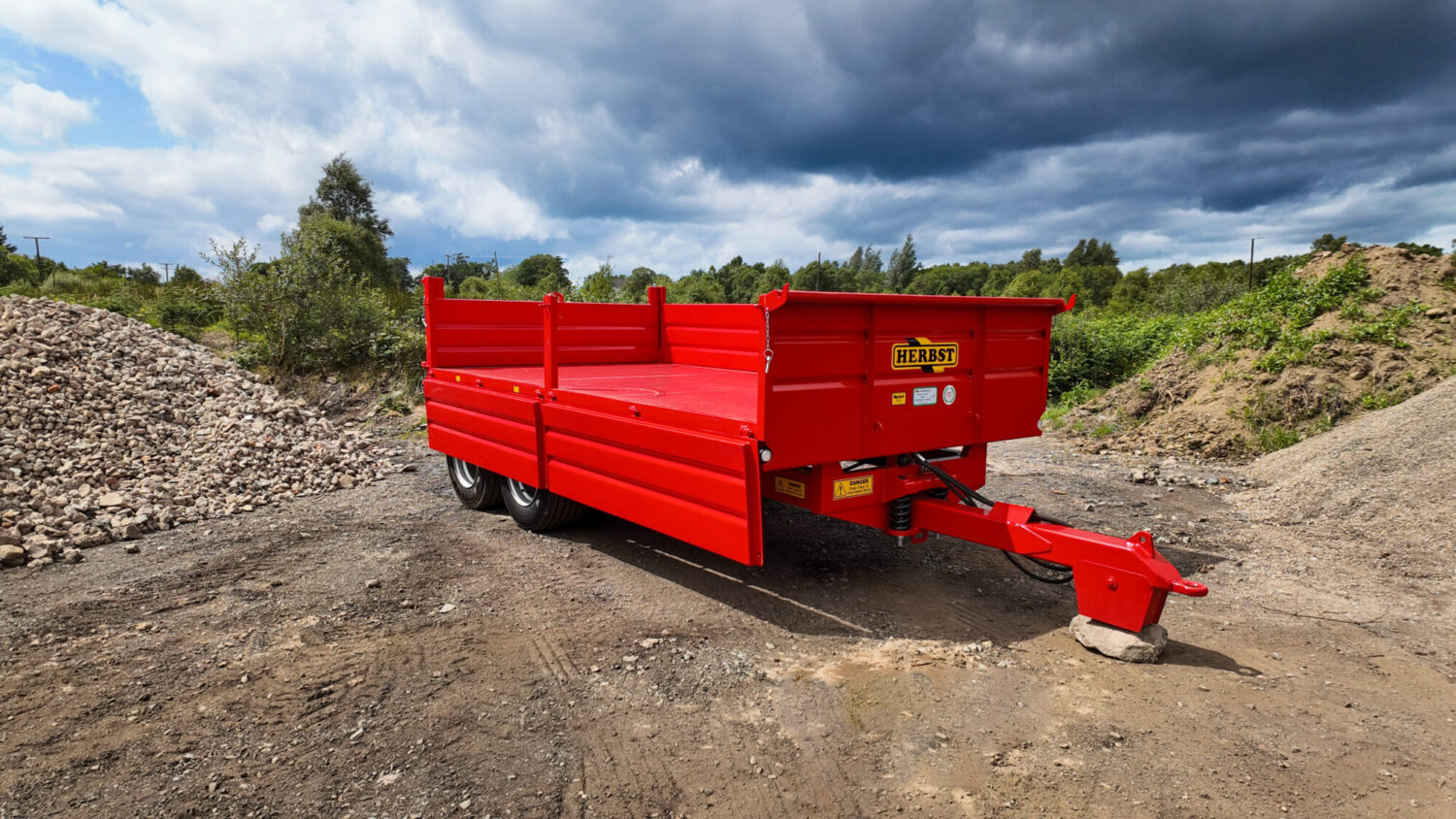

  • Heavy Duty Removable Drop Down Sides and Rear Door

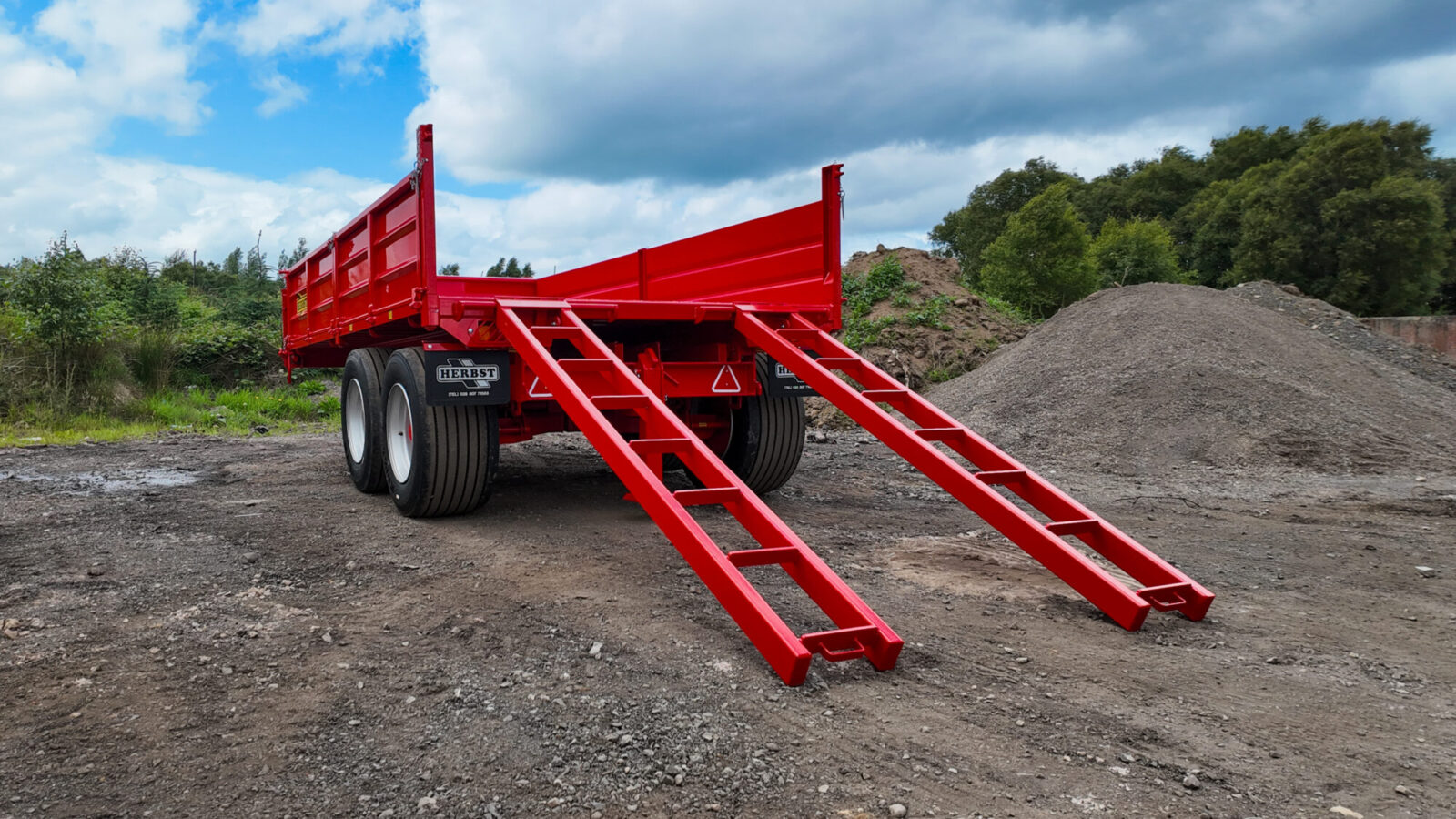

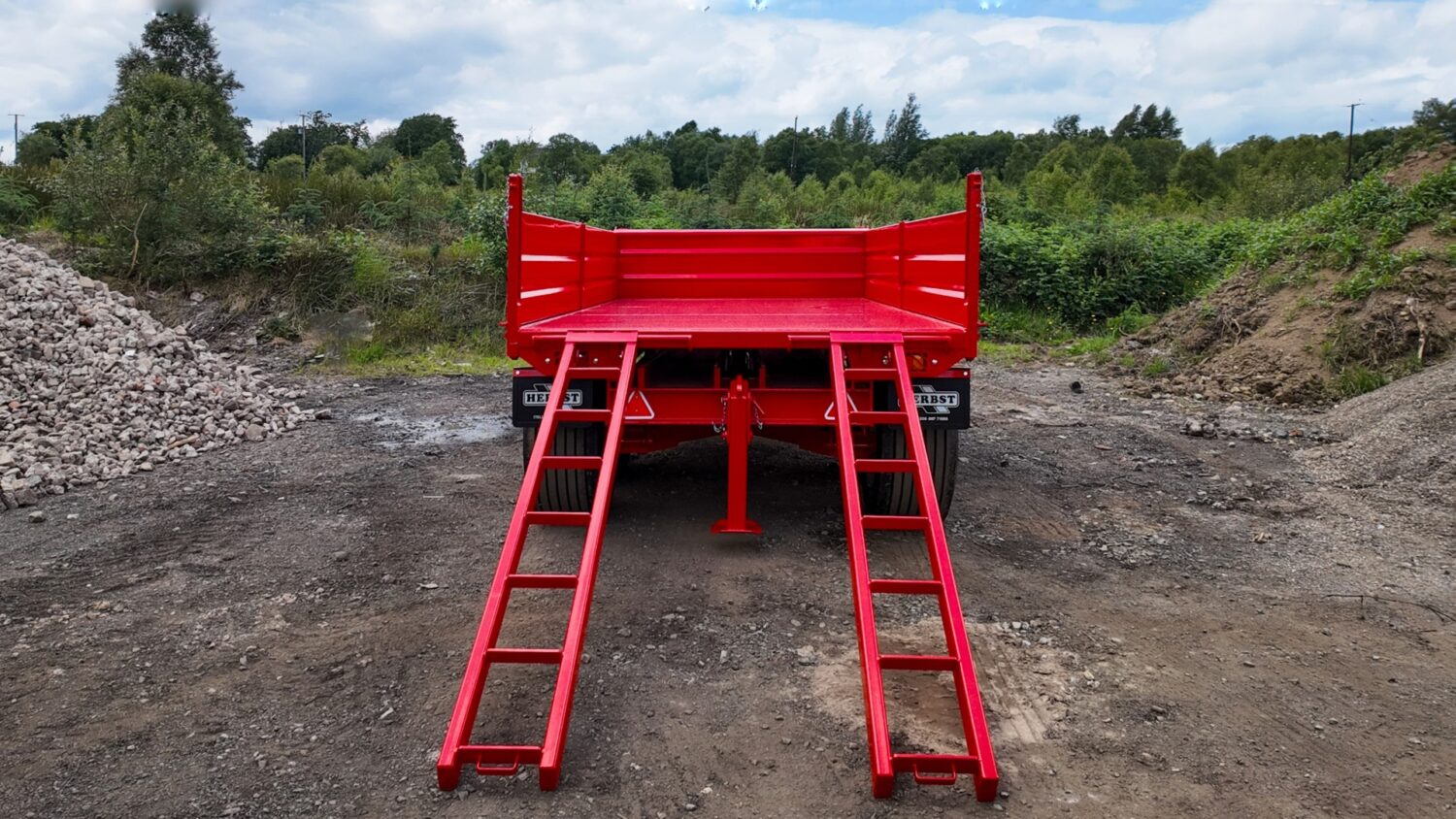

  • Loading Ramps with Storage Tray
  • Support Stool

Optional Features

  • Hydraulic / Manual Jack Leg
  • Colour
